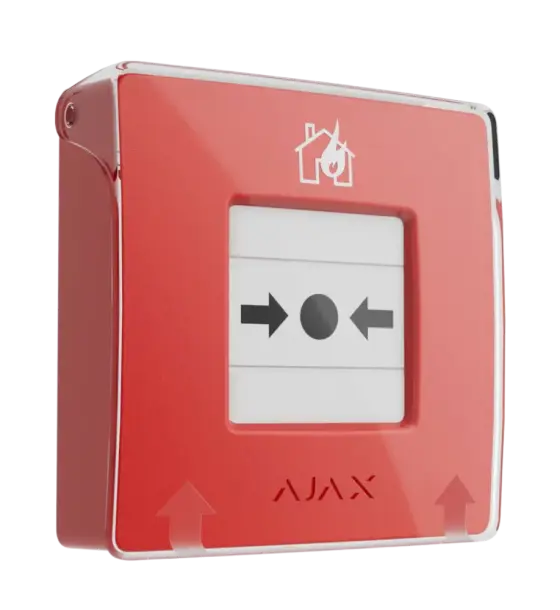

Product Type: Wireless wall-mounted resettable button for manual alarm activation
Installation Method: Indoor wall mounting using SmartBracket; recommended height: 1.4 m above floor level
Compatibility: Compatible with Ajax Hub Plus, Hub 2 (2G/4G), Hub 2 Plus, Hub Hybrid (2G/4G), ReX, and ReX 2
Communication Protocol: Jeweller (two-way encrypted radio communication)
Maximum Communication Distance: Up to 1,700 meters in open space
Power Supply: 2 × CR123A batteries (pre-installed)
Battery Life: Up to 7 years
Operating Temperature Range: 0°C to +50°C
Operating Humidity: Up to 85%
Protection Class: IP50
Dimensions: 90 × 90 × 26 mm
Weight: 130 g
Color Options: Red, Blue, Green, Yellow, White
Tamper Protection: Yes; built-in accelerometer detects removal or displacement
Operating Modes: Scenario trigger (default), Fire alarm, Auxiliary alarm, Panic button, Gas leak alarm, Malfunction alert, Water leak alarm
Reset Mechanism: Resettable using a special key included in the kit
LED Indication: Indicates alarm state, tamper alerts, low battery, and malfunctions
Automation Scenarios: Supports activation of automation devices (e.g., relays, sockets, switches)
Notifications: Push notifications, SMS, calls; events logged with timestamp and location
CMS Connectivity: Supports integration with central monitoring stations via SurGard (Contact ID), SIA (DC-09), ADEMCO 685 protocols
Certifications: CE compliant
