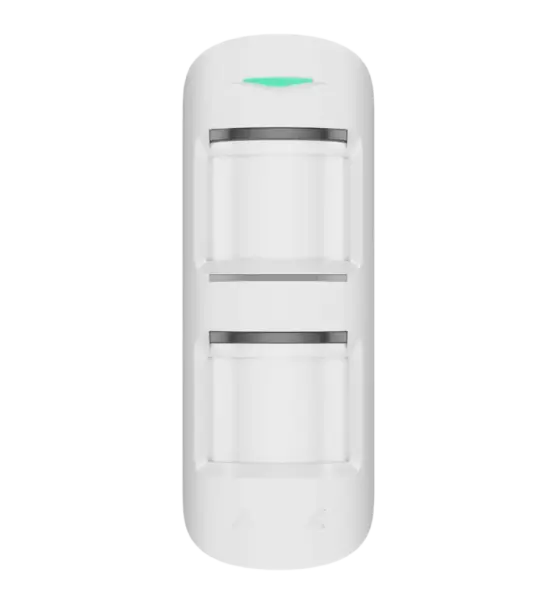

Product Type: Outdoor Motion Detector
Detector Type: Wireless
Installation Method: Outdoor
Compatibility:
• Works with all Ajax hubs
• Compatible with range extenders
Sensor Elements: 2 × PIR sensors, digital signal processing
Alarm Signal Delivery Time: 0.15 seconds
Motion Detection Distance: Adjustable, 3 to 15 meters
Detection Angles:
• Horizontal: 90°
Recommended Installation Height: 0.8 – 1.3 m
Sensitivity: Adjustable, 3 levels
Pet Immunity: Yes (up to 80 cm height)
Tamper Protection: Yes
Anti-masking: Yes
Battery:
• 2 × CR123A batteries
• Battery Life: Up to 5 years
Communication Range with Central Unit: Up to 1700 m in open space
Radio Frequency Bands:
• 868.0–868.6 MHz
• Self-adjusting RF output power: up to 20 mW
Encryption: AES algorithm
Ping Interval: 12–300 seconds
Operating Temperature Range: -25°C to +60°C
Permissible Humidity: Up to 95%
Protection Class: IP55
Dimensions: 183 × 70 × 65 mm
Weight: 322 g
Color: White
