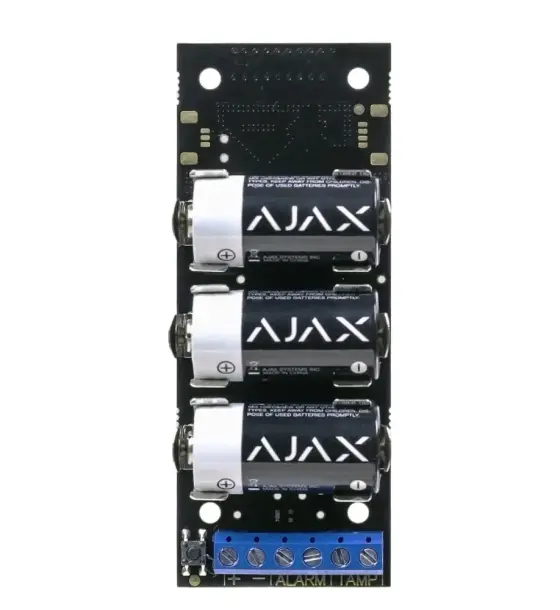

Product Type: Wireless module for integrating third-party wired detectors into the Ajax security system
Compatibility: Compatible with Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus, and Hub Hybrid
Communication Protocol: Jeweller (two-way encrypted communication)
Maximum Communication Range: Up to 1,600 meters in open space
Supported Detector Types: Wired devices with NC (Normally Closed) or NO (Normally Open) contacts, including motion detectors, opening sensors, glass break detectors, fire detectors, gas detectors, leak detectors, vibration sensors, panic buttons, and medical buttons
Power Supply: 3 × CR123A batteries (3 V); provides 3.3 V power output for connected detectors
Battery Life: Up to 5 years (depending on usage and connected device power consumption)
Tamper Protection: Yes; detects removal or displacement via built-in accelerometer
Operating Temperature Range: −25°C to +50°C
Operating Humidity: Up to 75%
Dimensions: 100 × 39 × 22 mm
Weight: Approximately 74 g
Installation Method: Installed inside the enclosure of the third-party wired detector
Maximum Cable Length to Detector: Up to 150 meters (using 24 AWG twisted pair cable)
Certifications: EN 50131 Grade 2 compliant
