Product Type: Low-voltage power supply module
Device Type: Wired
Purpose: Allows powering Ajax NVR from 12 V DC sources instead of a standard 110/230 V AC grid
Compatibility: Ajax NVR
Voltage Input Range: 8–16 V DC (without jumper); 12.1–16 V DC (with jumper)
Voltage Output: 12 V DC ±3%
Switch-On Voltage: 8 V (without jumper); 12.1 V (with jumper)
Switch-Off Voltage: 6.5 V (without jumper); 10.35 V (with jumper)
Maximum Output Current: 2 A
Quiescent Current Consumption: 65 mA
Shutdown Current Consumption: 110 µA
Connector Type: Power jack 5.5 × 2.1 mm (male); socket 6.5 × 2.0 mm (female)
Operating Temperature: 0°C to +40°C
Humidity Resistance: Up to 75%
Protection Class: IP20
Installation: Replaces standard internal PSU; installed inside the NVR housing
Dimensions: 118 × 123 × 17 mm
Weight: 51 g

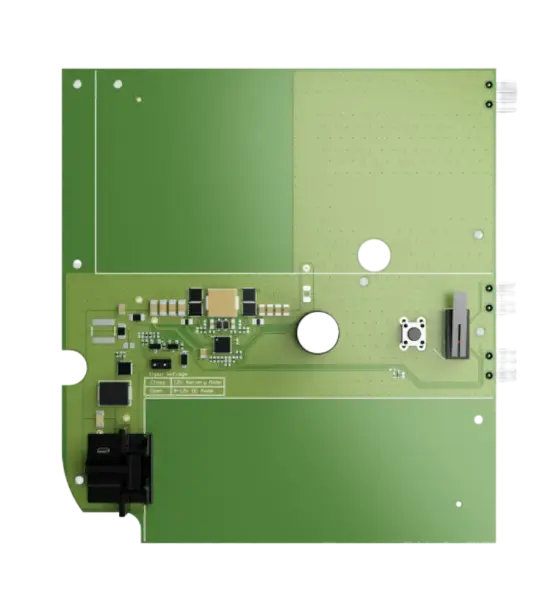

Color: Green PCB inside the device
Use Cases: Ideal for off-grid installations: mobile setups, vehicles, yachts, solar-powered systems
Warranty: 24 months
