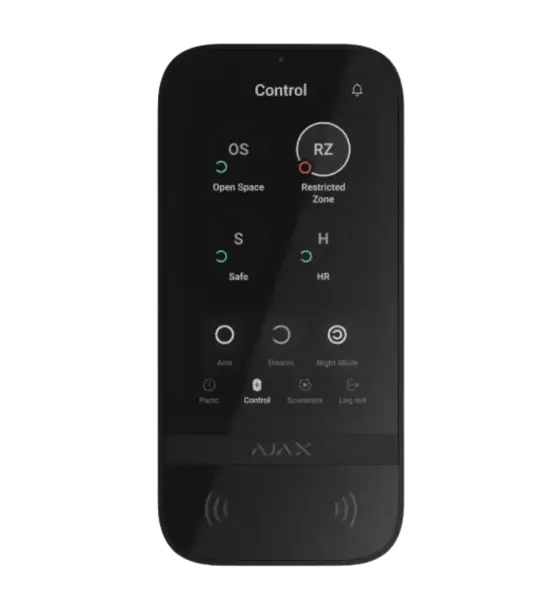

Product Type: Wireless indoor touch-sensitive keypad with a 5-inch IPS touchscreen
Installation Method: Indoor wall mounting using SmartBracket
Compatibility: Compatible with Ajax Hub 2, Hub 2 Plus, Hub Hybrid, and ReX 2 range extenders; requires OS Malevich 2.16.1 or later
Communication Protocols: Jeweller (for transmitting alarms and events), Wings (for firmware updates and additional data)
Maximum Communication Distance: Up to 1,700 meters in open space
Power Supply: 6 × AA batteries (pre-installed); optional external power supply (10.5–14 V DC, ≥0.5 A)
Battery Life: Up to 1.5 years on batteries; external power recommended for Always Active Display and firmware updates
Display: 5″ IPS touchscreen (480 × 854 px), capacitive sensor, automatic and manual brightness adjustment
Operating Temperature Range: -10°C to +40°C
Operating Humidity: Up to 75%
Protection Class: IP50
Dimensions: 172 × 82 × 26 mm
Weight: 327 g
Color Options: White or Black
Tamper Protection: Yes
Authentication Methods: Smartphone (via Bluetooth Low Energy), Pass cards, Tag key fobs (DESFire® 13.56 MHz), personal and general codes
Access Device Capacity: Up to 200 personal access codes; up to 99 codes for unregistered users (depending on hub model)
Security Features: Duress code support, unauthorized access auto-lock, user pre-authorization
Automation Control: Supports up to 6 automation devices or groups; scenarios configurable via Ajax apps
Notifications: Push notifications, SMS, calls; built-in buzzer for alarms, entry/exit delays, door openings
CMS Connectivity: SurGard (Contact ID), SIA (DC-09), ADEMCO 685
Certifications: EN 50131 (Grade 2), PD 6662:2017
