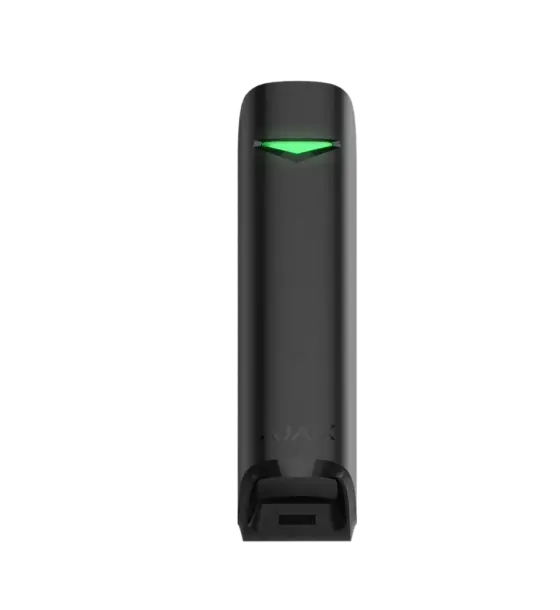

Product Type: Wireless indoor curtain-type IR motion detector
Installation Method: Indoor wall mounting using SmartBracket; recommended height: 2.4 m
Compatibility: Compatible with all Ajax hubs and range extenders
Communication Protocol: Jeweller (two-way encrypted communication)
Maximum Communication Distance: Up to 1,700 meters in open space
Power Supply: 1 × CR123A battery (pre-installed)
Battery Life: Up to 3 years
Operating Temperature Range: −25°C to +60°C
Operating Humidity: Up to 95%
Protection Class: IP54
Dimensions: 134 × 44 × 34 mm
Weight: 118 g
Color Options: White or Black
Tamper Protection: Yes; detects removal or displacement
Detection Range: Up to 15 meters (adjustable)
Detection Angles: Horizontal — 6°, Vertical — 90°
Sensitivity Levels: Three levels (Low, Medium, High); adjustable via Ajax apps
Pet Immunity: Install the detector upside down to prevent it reacting to domestic animals
False Alarm Prevention: Correlation Signal Processing (CSP); when enabled, both PIR sensors must detect identical motion signals to trigger an alarm
Mobile Applications: iOS, Android
Desktop Applications: macOS, Windows
Notifications: Push notifications, SMS, calls
CMS Connectivity: Supports integration with central monitoring stations via SurGard (Contact ID), SIA (DC-09), ADEMCO 685 protocols
Certifications: CE compliant
