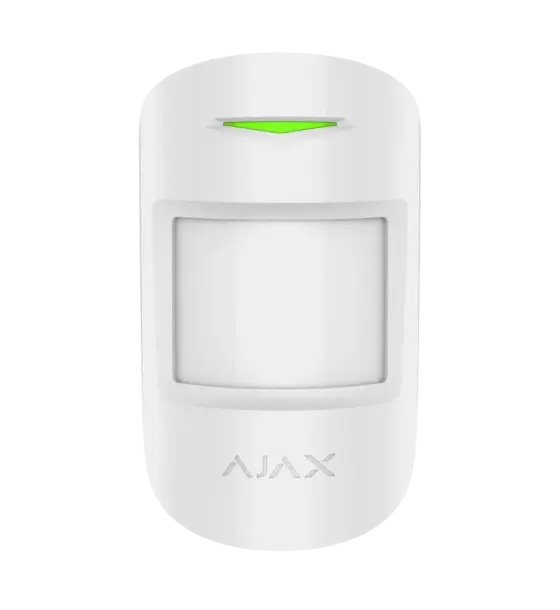

Product Type: Electro-Optical Wireless Motion Detector
Detector Type: Wireless
Installation Method: Indoor
Compatibility:
• Works with all Ajax hubs
• Compatible with range extenders
• Also supports ocBridge Plus and uartBridge
Sensor Element: PIR sensor
Operating Principle:
The device detects human presence by analyzing IR radiation levels using a passive infrared sensor
Alarm Signal Delivery Time: 0.15 seconds
Motion Detection Distance: Up to 12 meters
Detection Angles:
• Horizontal: 88.5°
• Vertical: 80°
Recommended Installation Height: 2.4 m
Power Supply:
• Battery: CR123A, 3V
• Battery Life: Up to 5 years
Communication Range with Central Unit: Up to 1700 m in open space
Two-Way Communication with Devices: Yes
Radio Frequency Bands:
• 866.0 – 866.5 MHz
• 868.0 – 868.6 MHz
• 868.7 – 869.2 MHz
• 905.0 – 926.5 MHz
• 915.85 – 926.5 MHz
• 921.0 – 922.0 MHz
Self-Adjusting RF Output Power: Up to 20 mW
Permissible Humidity: Up to 75%
Dimensions: 110 × 65 × 50 mm
Weight: 86 g
