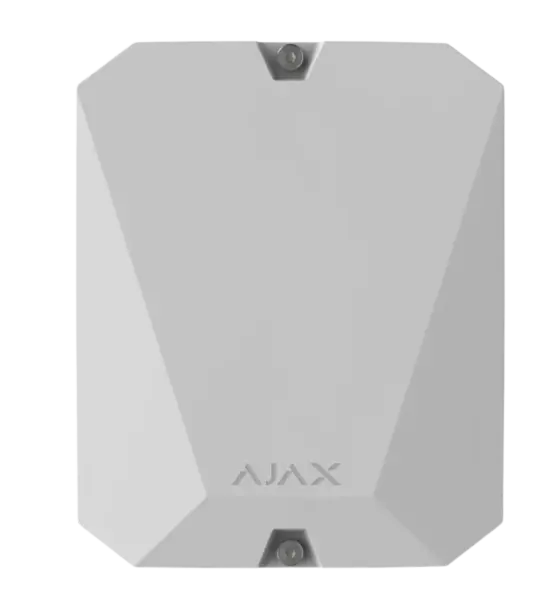

Product Type: Transmitter
Compatibility: All Ajax radio signal range extenders
Two-Way Communication: Yes
Instant Notifications: Yes
Remote Configuration via Ajax Applications: Yes
Frequency Bands:
• 866.0 – 866.5 MHz
• 868.0 – 868.6 MHz
• 868.7 – 869.2 MHz
• 905.0 – 926.5 MHz
• 915.85 – 926.5 MHz
• 921.0 – 922.0 MHz
Maximum Effective Radiated Power (ERP): Up to 20 mW
Radio Signal Modulation: GFSK
Radio Communication Range: Up to 2000 m
Multiple Wired Devices Can Be Connected in One Zone
• The number of connected devices depends on their power consumption
Connection Types Supported: NC, NO, EOL
With software version lower than 2.13:
• In MultiTransmitter, you can assign a device name, alarm type, and room for each connected wired device
MultiTransmitter communicates with the hub via the encrypted Jeweller radio protocol
• Jeweller is a TDMA technology developed by Ajax Systems for uninterrupted communication with devices
• It detects jamming attempts, automatically switches to backup frequencies if interference occurs
• Enables Ajax wireless devices to operate for years on battery power
Operating Humidity: Up to 75%
Protection Class: IP40
Dimensions: 192 × 238 × 100 mm
Weight: 805 g
Color: White
