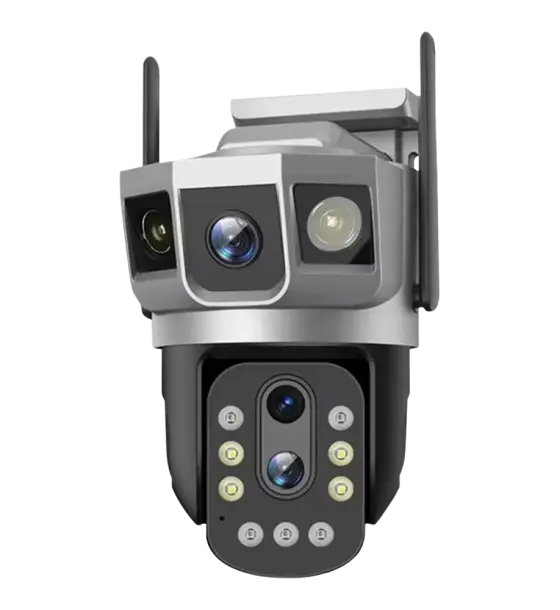

Product Type: 4G AI-powered PTZ + security IP camera
Model: SC23-4G-DL (10× Optical Zoom)
App: V380 Pro
System: Embedded Linux system, ARM architecture
Chipset: ANKA KM01D
Image Sensor: 1/2.7" Progressive Scan CMOS (SC2336 ×2)
Resolution: 4 MP
Lens:
– Upper camera: 2.8 mm fixed lens
– Lower PTZ camera: 3.6 mm + 8 mm
Optical Zoom: 10× optical zoom
Frame Rate: 15 FPS
Video Compression: H.265
Video Format: PAL
Viewing Angle:
– Upper camera: 120°
– Lower camera: 80°
PTZ Functions:
– Horizontal rotation: 270°
– Vertical rotation: 90°
Preset Points: 6
Minimum Illumination:
– 0.01 Lux @ F2.0 (VGC ON)
– 0 Lux with IR
Electronic Shutter: Auto
Backlight Compensation: Supported
Noise Reduction: 2D / 3D
Night Vision:
– Automatic IR-CUT switch
– IR distance: approx. 10–15 m (environment dependent)
– White LED modes via APP: ON / OFF / Auto
– Intelligent human detection controls white light switching
LED Configuration:
– Bullet camera: 2 × white LEDs + 2 × IR LEDs
– PTZ camera: 4 × white LEDs + 5 × IR LEDs
Audio:
– Built-in microphone and speaker
– Two-way audio with real-time transmission
– ADPCM audio compression, adaptive stream coding
AI Features:
– Human detection
– AI human tracking
Alarm Functions:
– Motion detection
– Voice alarm
– Image push notifications
Storage:
– TF card (up to 128 GB)
– Cloud storage (optional)
Network Connection:
– 4G SIM card support
– RJ45 Ethernet port
Cellular Bands:
– LTE-FDD: B1 / B3 / B5 / B8
– LTE-TDD: B34 / B38 / B39 / B40 / B41
Network Protocols: TCP/IP, DDNS, DHCP
Power Supply: 12 V DC / 2 A (power adapter included)
Operating Temperature: −10°C to +50°C
Operating Humidity: ≤75% RH
