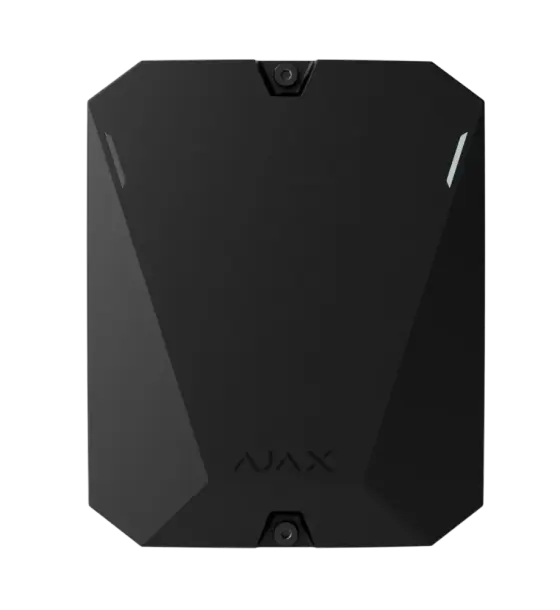

Product Type: Module for connecting Ajax security systems to third-party VHF transmitters
Compatibility: Compatible with Ajax Hub 2, Hub Plus, Hub 2 Plus, and Hub Hybrid
Communication Protocol: Jeweller (two-way encrypted communication)
Maximum Communication Range: Up to 1,800 meters in open space
Power Supply: 100–240 V AC mains; optional 12 V DC backup battery (not included)
Backup Battery Support: Supports 12 V batteries up to 7 Ah; provides up to 75 hours of autonomous operation
Outputs: 8 transistor outputs for connection to third-party VHF transmitters
Output Types: Configurable as high or low potential; pulse duration adjustable from 1 to 255 seconds
VHF Transmitter Power Supply: 12 V DC output with a maximum current of 2 A
Tamper Protection: Yes; detects removal or displacement
Operating Temperature Range: −10°C to +40°C
Operating Humidity: Up to 75%
Protection Class: IP50
Dimensions: 196 × 238 × 100 mm (with casing); 145 × 89 × 51 mm (without casing)
Weight: 840 g (with casing); 165 g (without casing)
Installation Method: Indoor wall mounting; casing optional
Certifications: CE compliant
