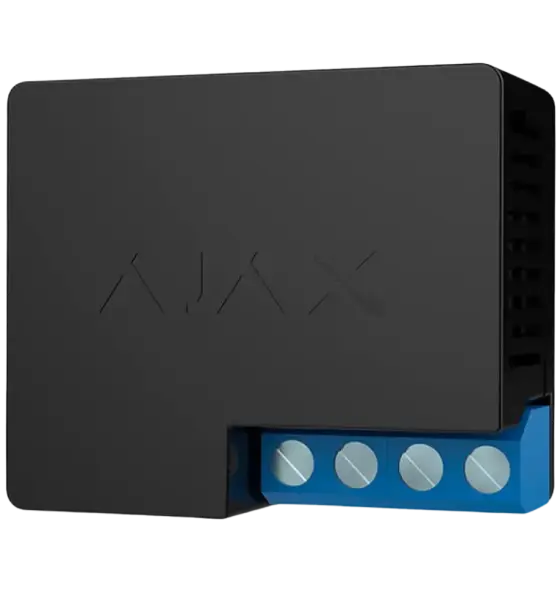

Product Type: Wireless power relay for remote control of 110–230 V~ electrical appliances
Compatibility: Compatible with all Ajax hubs and radio signal range extenders
Communication Protocol: Jeweller (two-way encrypted communication)
Maximum Communication Range: Up to 1,000 meters in open space
Power Supply: 110–230 V~, 50/60 Hz
Maximum Load: Up to 3 kW (resistive load)
Maximum Load Current: 13 A
Operating Modes: Pulse and bistable (firmware version 5.54.1.0 and higher)
Adjustable Pulse Duration: 1 to 255 seconds
Relay Contact States: Normally open or normally closed (configurable)
Control Methods: Ajax app, automation scenarios, function button on the device
Energy Monitoring: Measures current, voltage, power consumption, and energy used
Protections: Voltage (184–253 V~ for 230 V~ grids), current (13 A), temperature (over +65°C)
Operating Temperature Range: 0°C to +64°C
Operating Humidity: Up to 75% (non-condensing)
Dimensions: 39 × 33 × 18 mm
Weight: 30 g
Installation Method: Indoor use; mounts inside a junction box or on a DIN rail (DIN Holder sold separately)
Ingress Protection: IP20
Certifications: CE compliant
