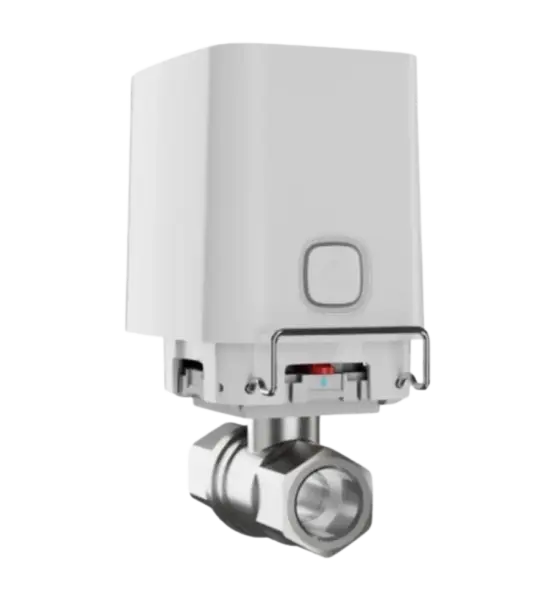

Product Type: Wireless remotely controlled water shutoff valve
Compatibility: Compatible with Ajax Hub Plus, Hub 2 (2G/4G), Hub 2 Plus, Hub Hybrid (2G/4G), ReX, and ReX 2
Communication Protocol: Jeweller (two-way encrypted communication)
Maximum Communication Range: Up to 1,100 meters in open space
Power Supply: 4 × CR123A batteries (pre-installed); optional external power supply 7.5–14 V DC, up to 1.8 A
Battery Life: Up to 3 years
Valve Type: ½" (DN 15) RuB brass ball valve with BSP parallel female threads
Operating Pressure: Up to 10 bar
Operating Fluid Temperature Range: +5°C to +120°C
Torque: Up to 8.5 N·m
Shutoff Speed: Up to 7 seconds
Manual Control: Control button on the electric actuator enclosure and lever on the shutoff valve mount
Automation Scenarios: Supports scenarios triggered by leak detectors, security mode changes, schedules, temperature, humidity, CO₂ levels, and button presses
Tamper Protection: Yes; tamper alarm notifies about attempts to detach the enclosure from the mount
Operating Temperature Range: 0°C to +60°C
Operating Humidity: Up to 95%
Protection Class: IP56
Dimensions: 104 × 140 × 70 mm (with shutoff valve and electric actuator)
Weight: 869 g (with shutoff valve and electric actuator)
Color Options: White or Black
Installation Method: Indoor use; mounts on existing pipelines; complies with ISO 5211 standard
Certifications: CE compliant
